PRODUCT DETAILS
SPECIFICATIONS
Origin: Mainland China
Model Number: 130YJS
Type: Electric Strike Lock
Material: Stainless steel
Working Current: 110mA-250mA
Working Voltage: DC12V +- 10%
Item Type: Strike Lock
Working Temperature: -30-+60 Celsius Degree
Opening Mode: 90 degree swinging door
Function: Built-out MOV
Operating Humidity: 0~90%(non-condensing)
Suitable for door: Wooden/metal/fireproof door, etc
Feature: Fail secure (NO), Fail safe(NC) for choice
Function1: Electronic Lock
Function2: electronic door lock
Function3: Door lock
Electric Strike Lock for Door Access Control System Video Intercom System
High-Temperature Painted. Duable and Beatiful Artical.
What's NO, NC?
NO means locked when power off, unlocked when power on
NC means locked when power on, unlocked when power off
Product Features:
Embedded installation, beautiful appearance, electromagnetic part
made of high quality magnetic materialsand special process.
Long working hours does not produce residual magnetism, ensure the normal use.
Product Specifications:
Voltage: 12V ± 10%
Current: 200mA - 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
Function: Built-out MOV
Performance Testing: 1000000 times aging test
Opening Mode: 90 degree swinging door

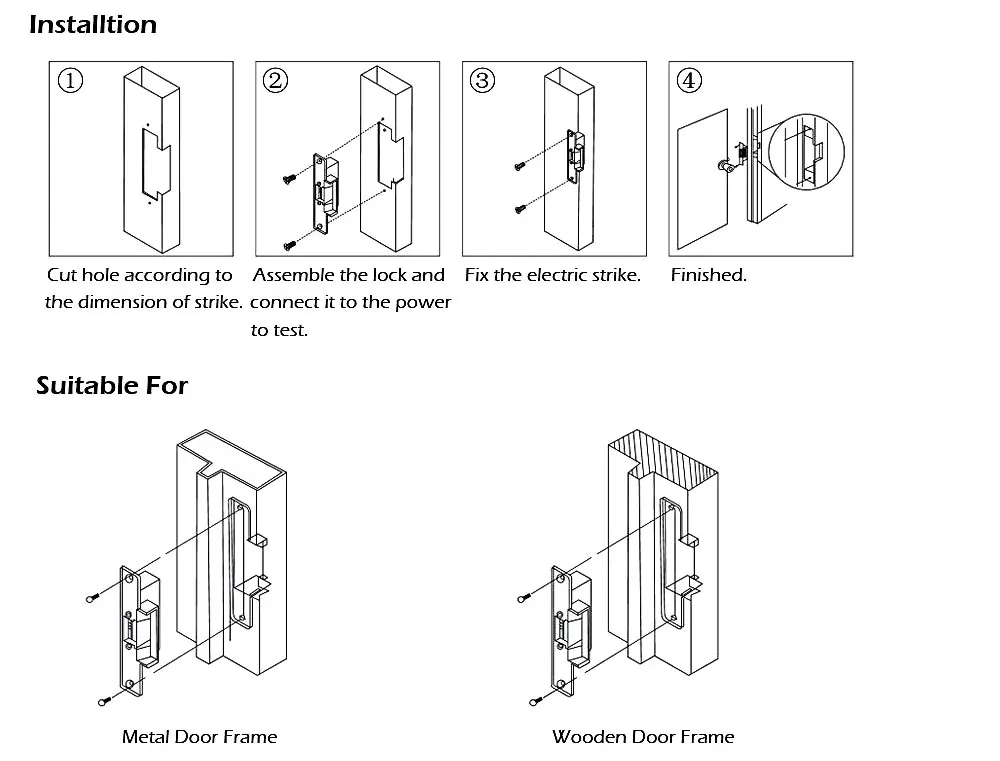

Apply wooden door, glass door, metal door, fireproof door,any frame doors，etc
Size: 150 x 28 × 34mm（L / W / H）

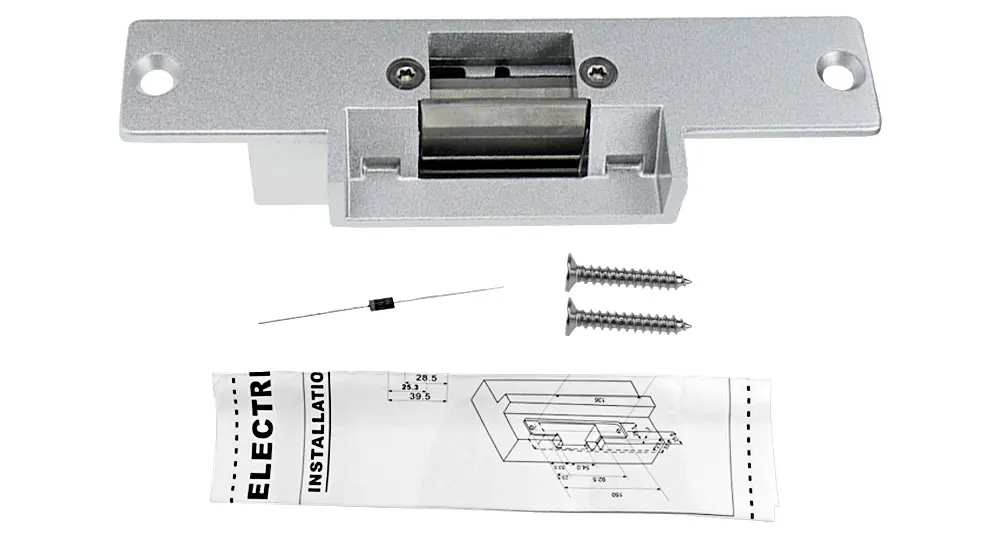

Product Included:
1 x electric strike lock
1 x Installation Package
1 x Installation Instructions
Not including access control keypad, power supply, exit button.

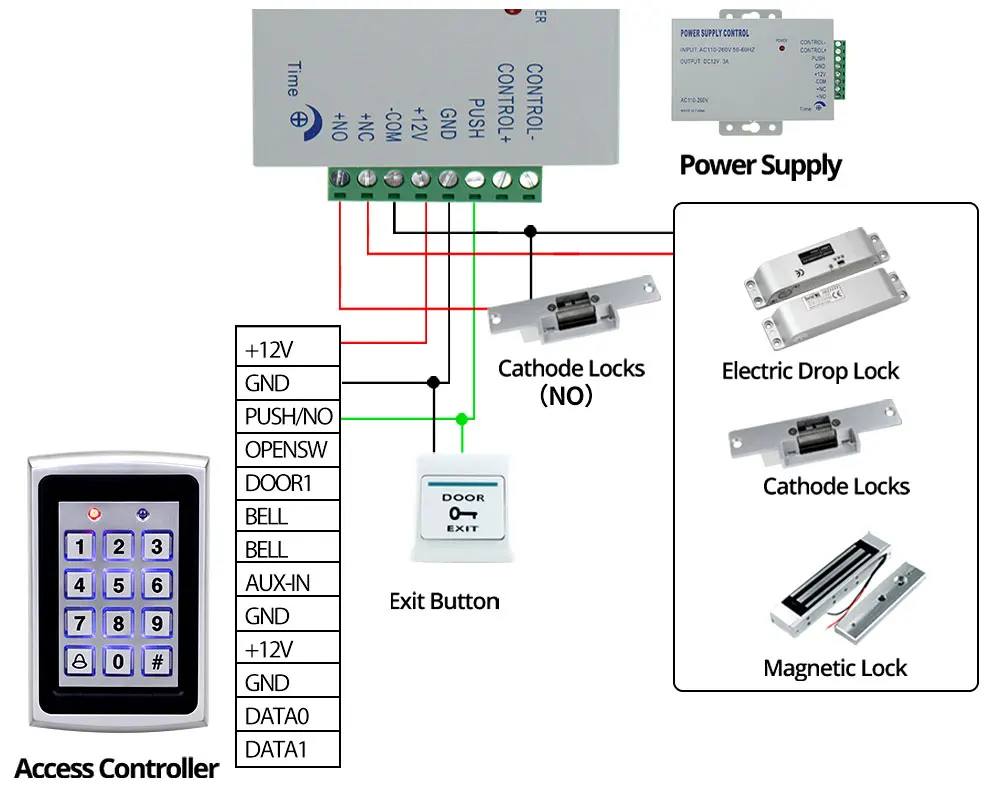

Please note this package is including electric strike lock only, not including power supply, access controller, exit button. If you want, please contact us.
