SPECIFICATIONS

Certification: CE

Origin: Mainland China

Model Number: MIG-120

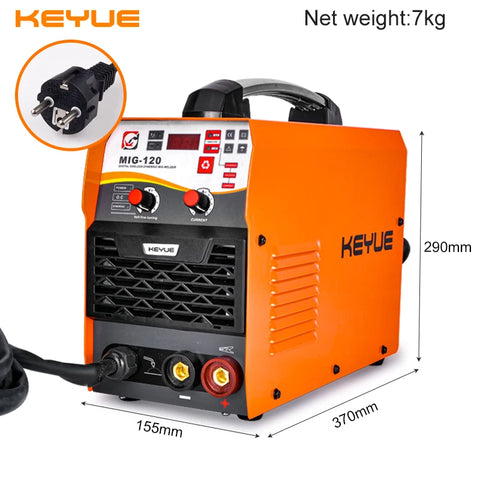

Dimensions: 370*155*290mm

Usage: welding

Plug Type: EU plug

*Inverter mig welder 220V MIG/ARC/TIG function in one.

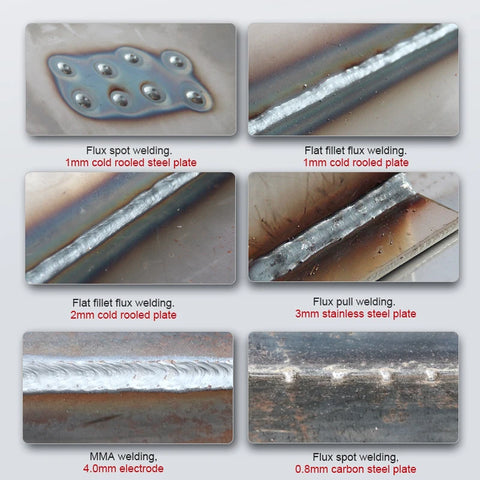

*MIG(Synergic)mode: no gas iron welding,using 0.6/0.8/1.0mm flux cored wire to weld 0.8-4.0mm thickness metal,duty cycle:40%.

*TIG mode: connect Argon gas to weld 1.0-3.0mm stainless steel.

*ARC mode: using 1.0-2.5mm rods to weld 1.0-5.0mm metal.

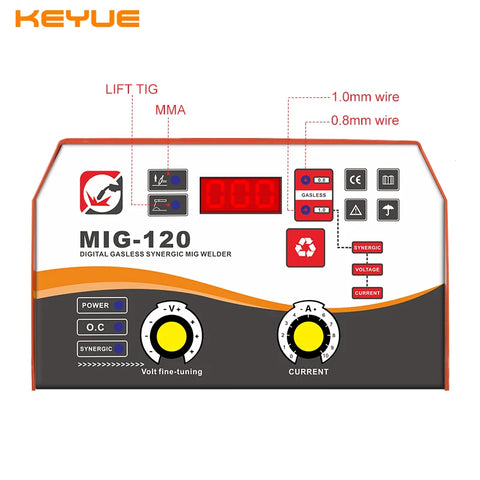

*Full-digital control system to realize precise control and stable arc length during welding.

*Great reduction in metal loss obviously enhances the welding efficiency and energy saving effect.

Specifications:

Brand name: Keyue
Model : MIG-120 Digital control
Inverter technology: IGBT
Function: MMA MIG
Input voltage : 1P 220 V
Rated Input power : MMA:3.5KVA MIG:4.2KVA
Rated input current :MMA:16 A MIG:19A
Output current : MMA:20-120 A MIG:20-120A
No load voltage : 56V
Protection grade : IP21
Duty cycle :MMA:40C°120A @ 40%
MIG: 40C°120A @ 40%
MMA:40C°76A @ 100%
MIG:40C°76A @ 100%
Welding wire diameter(mm): 0.6/0.8/1.0

Portable Welder Welding Machine Inverter 220V 1kg Gasless 0.8/1.0 Flux Core ARC TIG 3 in 1 Home Use
