A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don't know how to choose, please contact us after taking a photo of the door, thank you.

Product Description

Access Controller

User capacity: 3000
Material: ABS high quality material
Panel: touch screen panel
Working frequency: 125KHz
Card reading type: support EM compatible card
Card reading distance: 0-10CM
Identification method: card, password, card + password
Backlight: has blue backlight
Waterproof function: IP68 waterproof, can be installed outdoor
Doorbell button: support wired doorbell
Wiegand signal: WG26/34 input/output
Can set management card: yes
Working voltage: DC 12V
Working current: ≤ 30mA
Door opening time: 0-255 seconds
Working temperature: -20 ° C ~ 70 ° C
Working Humidity: 20% ~ 90%
Product size: 140*70*16mm

Support RFID Card, password, RFID card + password to open the door

Support 3000 card and password user capacity, can set card + password to open the door, more secure!

IP68 waterproof, Can be installed outdoor

With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

Backlight keypad

The digits number can be seen clearly even at dark

Power Supply:

Material: Steel
Output Power: 36W
Durability Test: 500000 times
Input Frequency: 50-60Hz
Input Voltage: 110-260VAC
Output Voltage: DC12V/3A
Working Temperature: -20 to +65
Time Delay: 0-15 seconds adjustable
Relative Humidity: 0%-90%
Dimension: 100*65*32mm

Door Exit Button:

Material:Hard Plastic

Maximum Power Rating:36V DC 3A—5A output

Support both NC Mode (Fail Safe Mode) &

NO Mode (Fail Secure Mode)

Dimension:86X86MM ( L / W )

RFID Keyfobs:

125KHz rfid frequency key card
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Please Noted: There are 5 color of the RFID keyfobs for optional (blue, red, yellow, green, black). We will send mix color by default. If you need other color, please leave message to us.

Package List

Kit3: Suitable for wooden door, metal door. convenient and beautiful. No need bracket

Package including: Access Control keypad + Power supply + NC type Electric Strike lock + Exit button + 10pcs Keyfobs

(We will send the NC type by default, if you want NO type, please leave us a message.)

Working Voltage: 12V ± 10%
Current: 200mA - 450mA
Holding Force: 500kg
Surface Temperature: Lower than room temperature +20
Working Temperature: -30-+60 Celsius Degree
Operating Humidity: 0~90%(non-condensing)
Feature：Fail secure (NO), Fail safe(NC)
Material: Stainless steel
NC type strike lock: Locked when power on, unlocked when power off
NO type strike lock: Locked when power off, unlocked when power on
Size: 150 x 28 × 34mm（L / W / H）

Kit4: Suitable for wooden, metal and Stainless steel door. No need bracket.

Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 10pcs Keyfobs

Working voltage: 12V

Time delay: 0s,3s,6s adjustable
Working current: Start state 1.2A ; Persistent state 120mA
Coil type: Continuous working
Security type: Electric power lock, unlock
Lock core: The diameter og 12.5MM stainless coer, exteding the lengh of 15MM
Locking mode: Magnetic induction
Unlock Mode: Fail Safe (Locked when power on, unlocked when power off)
Dimension: 150X34X28( L / W / H )

Kit5: Suitable for wooden, metal and glass frame door. No need bracket.

Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs

Material: Aluminum alloy shell + iron plate
Holding force: 180KG/350lbs
Working Voltage: DC12V
Working Current: 380-430mA
Humidity: 0 to 95%
Working Temperature: -10 to 55 Celsius degree
Working mode: power-on to lock, power-off to unlock
Waterproof: Yes. Can be install outside

Kit6: Suitable for frameless glass door. Need U bracket.

Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 10pcs Keyfobs

If your door is frameless glass door, then will need a U bracket

Size of U Bracket: 130* 33 * 26mm (L/W/H)

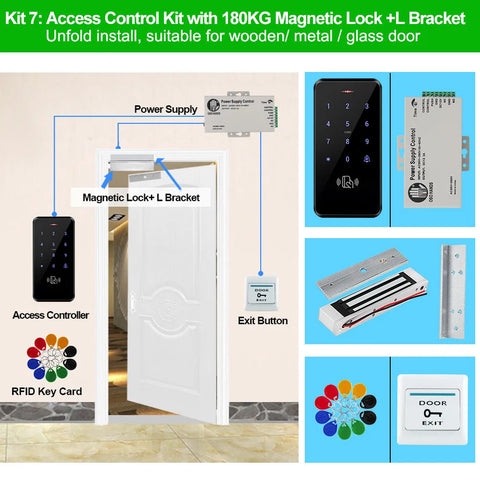

Kit7:Suitable for wooden, metal door. Need L bracket.

Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 10pcs Keyfobs

Look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.

Size of L Bracket: 170* 34 * 25mm (L/W/H)

Kit8: Suitable for wooden, metal, glass door. Need ZL bracket.

Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 10pcs Keyfobs

If your door is open from indoor, then need to add the ZL bracket.

Size of L Bracket: 170*34*25mm (L/W/H) ,

Size of Z Bracket: 138*45*45mm (L/W/H)

Kit9: Suitable for wooden, metal and glass frame door. No need bracket.

Package including: Access Control keypad + Power supply + Embedded 180KG Electric Magnetic Lock + Exit button + 10pcs Keyfobs

Size of the Lock: 192Lx33Wx20H(mm)
Size of Armature Plate: 139Lx32x11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12VDC
Current: 12V/120mA

Wiring Diagram

Note: We have this keypad with full black color and silver + black color for choice. We will send the full black color keypad by default. If you want the keypad with silver + black color, please leave a message to us. Thank you!

S20 IP68 waterproof Keypad, with black and silver color. Can be installed outdoor.

S20 IP68 waterproof Keypad, with full black color. Can be installed outdoor.
