PRODUCT DETAILS
SPECIFICATIONS
SUNKKO Model: 801H
Origin: Mainland China
Rated Duty Cycle: Spot Welder
Usage: Battery Spot Welding
Rated Capacity: 19.8KVA (Max)
Certification: CE
Certification: RoHS
Weight: 3.82kg (Packaging)
Dimensions: 176*67*126mm (Main Unit)
Max. Welding Thickness: 0.5mm (Stainless Steel)
Is Smart Device: YES
Model Number: GLITTER 801H
Input Voltage: 100V-240V
Peak Power: 19.8KW
Peak Current: 3500A

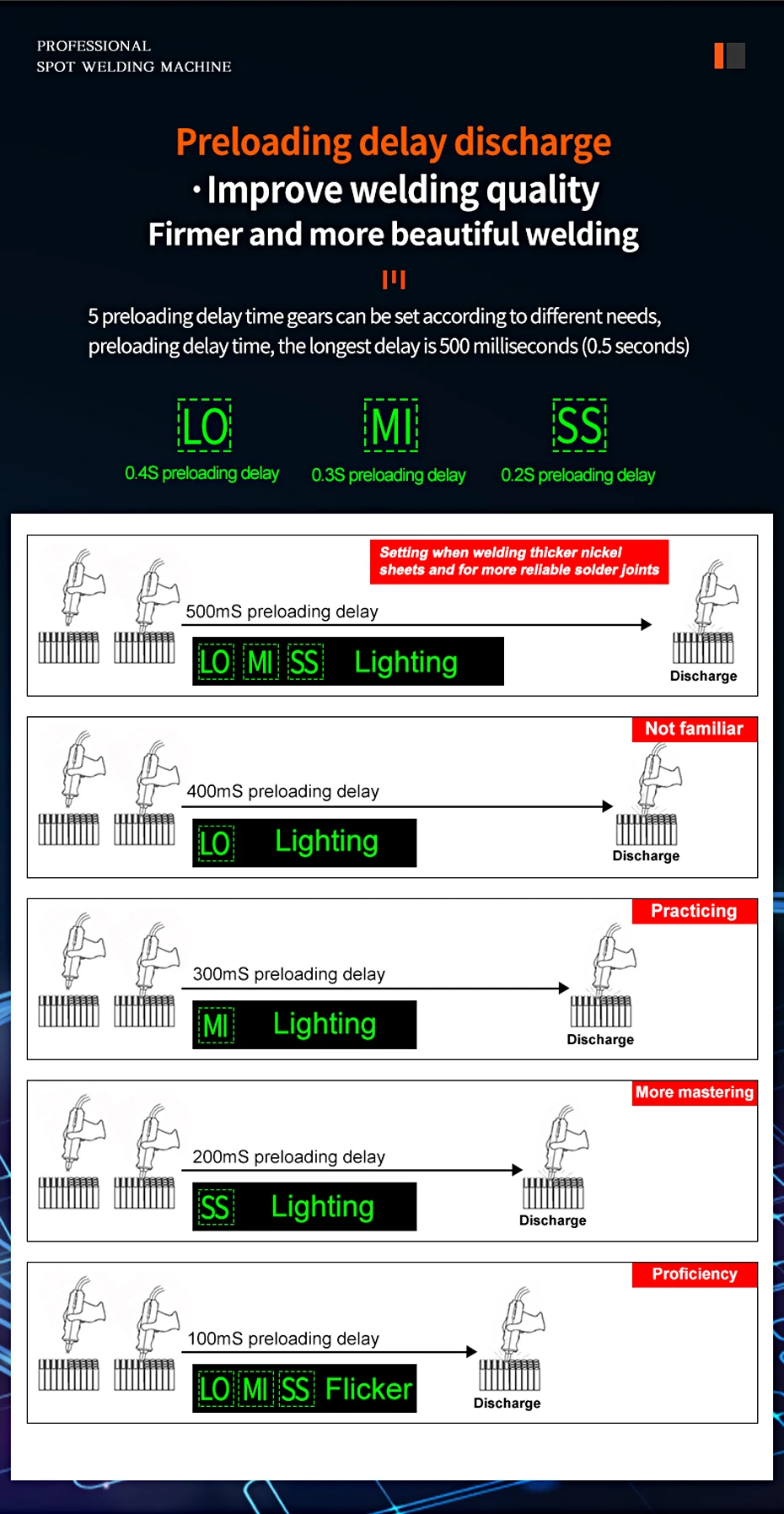

Preloading Delay Time: 100/200/300/400/500ms
Voltage Output: 5V-6V
Welding Thickness: 0.05mm-0.5mm (Aluminum to Nickel 0.2mm)
Peak Welding Energy: 238J
Pulse Time: 0-20ms (100 grade)
Welding Mode 1: Aluminum-Nickel Welding
Welding Mode 2: Nickel-Nickel Welding
Features 1: Spot Welder
Features 2: Battery Spot Welding
Features 3: Spot Welding Machine
Features 4: LiFePO4 Battery Welding
Features 5: Lithium Battery Pack Welding
Specifications:
Type: Capacitor Energy Storage Spot Welder
Model: GLITTER 801H
Input Voltage: 100V-240V
Power: 19.8KW (max)

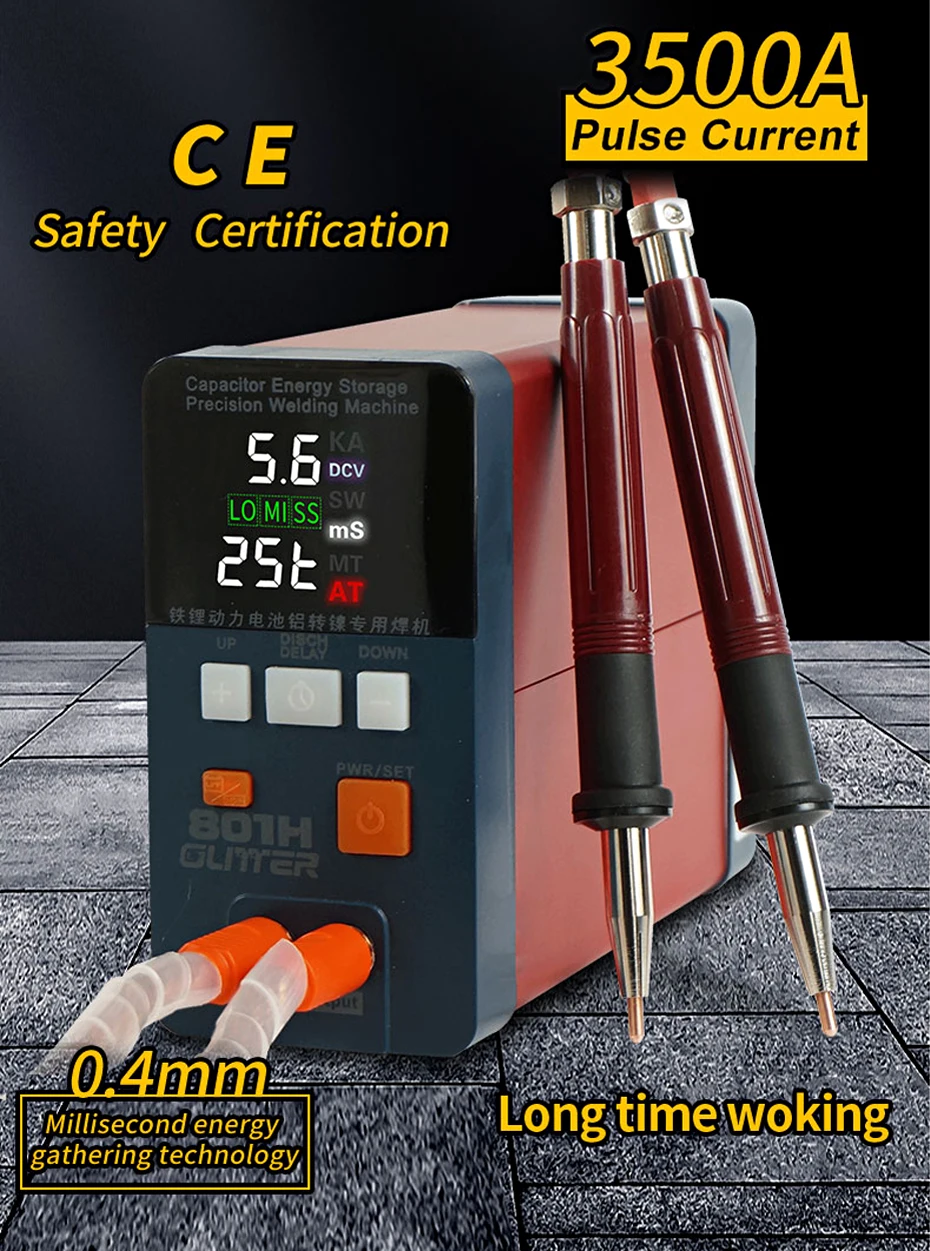

Pulse Current: 3500A (max)
Max Welding Thickness: 0.5mm (stainless steel)
Usage: Battery Spot Welding

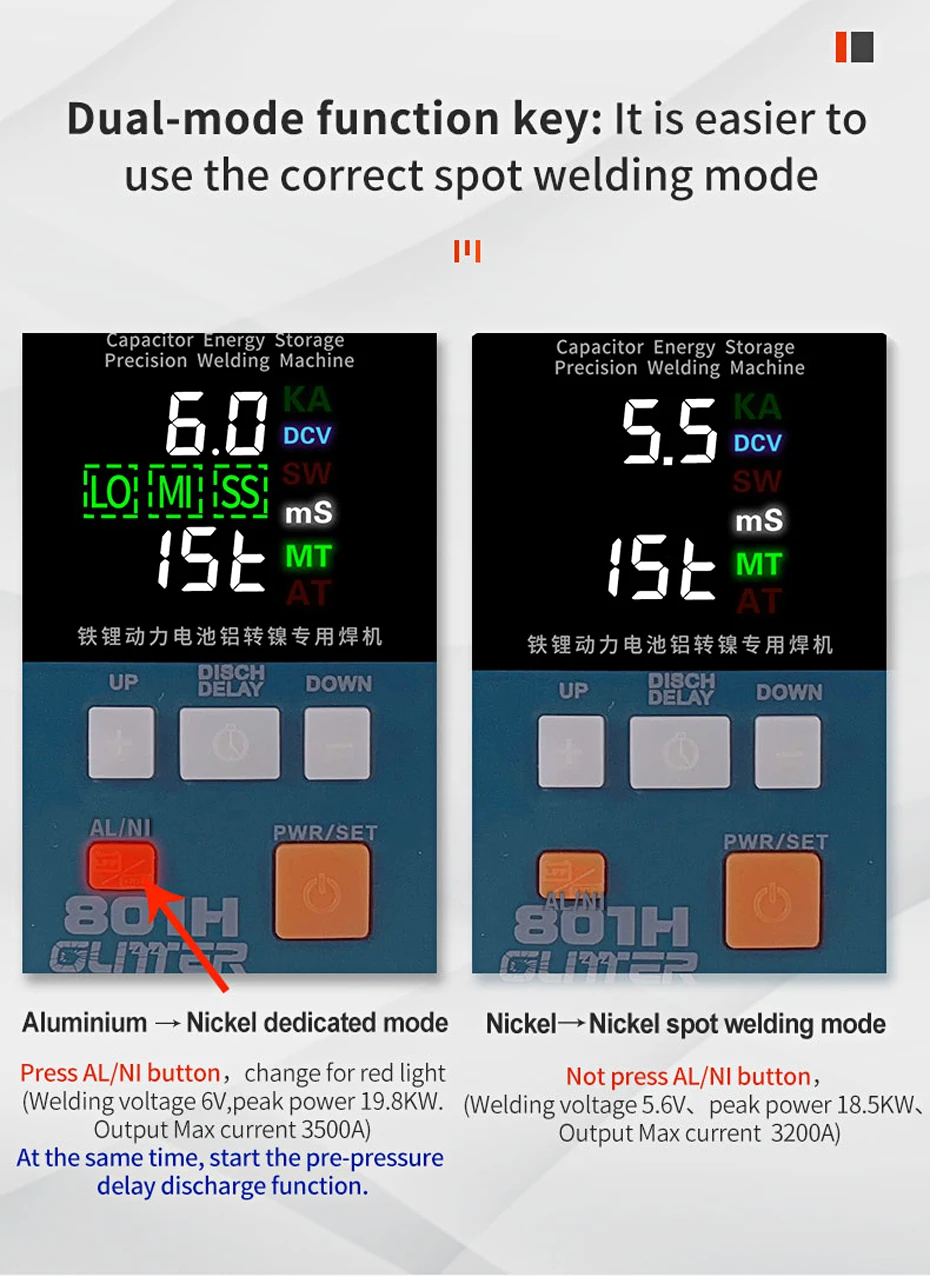

Welding Mode
1: Aluminum-Nickel Welding
Welding voltage 6.0V, peak power 19.8KW, maximum output current 3500A
Welding aluminum nickel thickness 0.2mm
2: Nickel-Nickel Welding
Welding voltage 5.2V, peak power 18.5KW, maximum output current 3200A
Welding pure nickel thickness 0.3mm, nickel-plated 0.4mm, stainless steel 0.5mm
